High-temperature Disc Springs / H-13 Hot-work Tool Steel Disc Springs
SOLON model reference: M58-F-17.8-H13 · SOLON-BELLEVILLE-CATALOG · locator 37
Dimensions, standards and downloadable engineering files are generated from published product data.

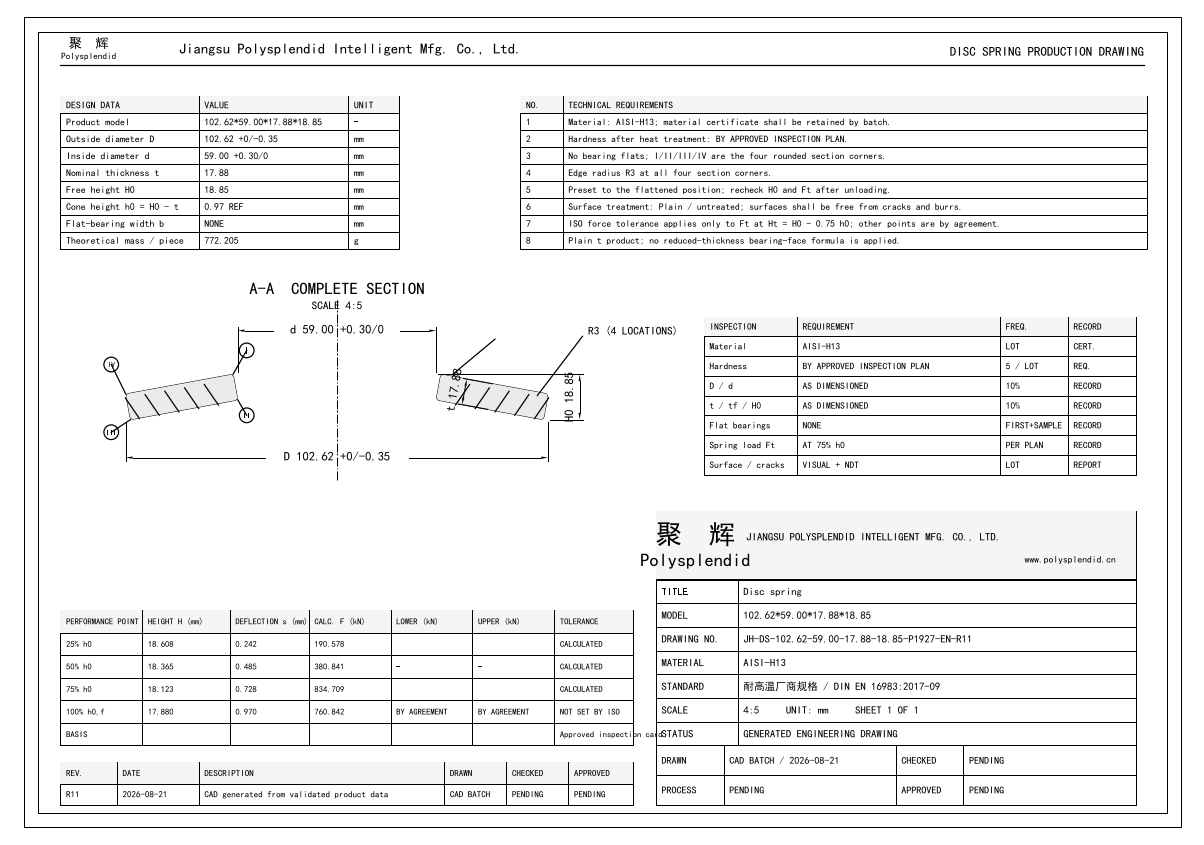

Open full drawing previewSpecial surface parameters must be reviewed against the released drawing; the profile name alone is not a complete geometry definition.
A missing FEM record is not evidence of failed validation. It means no approved product-level study is public on this page.
Parallel stacks primarily multiply load; series stacks primarily multiply travel. Friction, contact, guidance, preload and manufacturing scatter must be checked separately.
Each material and supplied-surface identity has its own database-driven workbook and PNG preview. A review or blocked status is not a production release.
PLAIN
FORGED_RING+HOT_WORK_TOOL_STEEL+NO_SUPPORT_FACE+STRONG_PRESS+PLAIN
Blocked — not for production
Download Excel · 21.2 kBLoads, stresses, thousand-piece weights and curves retain their manufacturer, source version, page/worksheet, material and temperature condition. A catalog value is an engineering reference unless the inspection dossier separately identifies an approved acceptance tolerance.
| Point | s/h0 | s (mm) | F (N) | σ1 / σII (MPa) | σ2 / σIII (MPa) | σ3 (MPa) | σOM (MPa) |
|---|---|---|---|---|---|---|---|
| catalog listed operating point | 0.995 | 0.9650 | 752,157 | — | — | — | — |
EN 10083 / EN 10089 / EN 10132-4 MPa
5 · EN 16983 page 7（PDF 9）deviation -0.35 / 0 mm；product limits 102.27–102.62 mm；h12
8.1 / ISO 286-2 · EN 16983 page 12（PDF 14）deviation 0 / +0.3 mm；product limits 59–59.3 mm；H12
8.1 / ISO 286-2 · EN 16983 page 12（PDF 14）0.7 mm；2 × IT12
8.1 / ISO 286-2 · EN 16983 page 12（PDF 14）0.8 mm；recommended guide pin diameter 58.2 mm
Table 12 · EN 16983 page 15（PDF 17）1 mm；recommended guide sleeve bore 103.62 mm
Table 12 · EN 16983 page 15（PDF 17）See requirement data
12 · EN 16983 section 12, page 21（PDF 23）2 × test load；压至平位后复核自由高度与检测负荷
7.4 / 8.4.2 · EN 16983 pages 12, 14（PDF 14, 16）无影响性能的斑疤、裂纹、锈蚀；边缘倒圆或去毛刺
7.5 · EN 16983 page 12（PDF 14）phosphated and oiled
7.5 · EN 16983 page 12（PDF 14）recommended for dynamic duty where fatigue-life improvement is required；process agreement required
10.2.2 · EN 16983 page 20（PDF 22）product maximum depth 0.5364 mm
7.2 · EN 16983 page 11（PDF 13）See requirement data
10.1 · EN 16983 page 17（PDF 19）0.15–0.2 h0；product limits 0.1455–0.194 mm
10.2.1 · EN 16983 page 18（PDF 20）Consult the manufacturer above 100 °C for material, stress and relaxation requirements
9 / Figures 3–4 · EN 16983 page 17（PDF 19）test position 0.75 h0；硬化、磨削并抛光的压盘；使用适合润滑剂
8.4.1 · EN 16983 page 13（PDF 15）按标准约定的量具、压盘及测量条件执行
8 · EN 16983 pages 13～14（PDF 15～16）See requirement data
11.3 · EN 16983 page 21（PDF 23）Acceptance inspection according to EN ISO 3269 where applicable
2 · EN 16983 pages 11～18（PDF 13～20）Contract and product documentation requirements apply
contract · EN 16983 pages 11～18（PDF 13～20）t产品 / 6 ≤ R ≤ t产品 / 5；product limits 2.98–3.576 mm；product recommendation 2.98 mm；Use actual product thickness: t for plain T products and t-prime for reduced TP products. CAD defaults to the lower bound while drawings expose the full recommended range.
Disc Spring Contact Surfaces · Machinery's Handbook 31st, p.390（厂商经验转述）0.2–0.75 h0；product limits 0.194–0.7275 mm
聚辉推荐 DS-G01 · Mubea 2023 manual PDF 27；SPIROL deflection-range white paper1–4
3.10 Spring stack design · Mubea Disc Springs Manual 2023, PDF 24See requirement data
10.2.2 · DIN EN 16983 page 18（PDF 20）按温度、介质和寿命选择油、脂、含二硫化钼膏或固体润滑；不得把未润滑摩擦忽略
guidance / lubrication / friction · Mubea 2023 manual PDF 25, 28～31；Christian Bauer theory PDF 17优先内导柱；空间或结构要求时使用外导套；低迟滞需求评估自定心结构
C.1 / 3.10 · GB/T 1972.2 附录 C；Mubea 2023 manual PDF 24～25De/Di=1.739322，De/t=5.739374，enhanced analysis required
3.9 Special cases · Mubea Disc Springs Manual 2023, PDF 21| Characteristic | Requirement / limits | Status | Source |
|---|---|---|---|
| Outside diameterD / De | 102.62 mm (-0.35/+0 mm); limits 102.27–102.62 mmThe high-temperature product keeps its material and vendor identity. Dimensional tolerances, coaxiality and guide clearances use the DIN EN 16983 general range rules; hardness is resolved separately from the material condition and vendor/order source. | Resolved | DIN EN 16983:2017-09EN 16983 page 12（PDF 14） |
| Inside diameterd / Di | 59 mm (+0/+0.3 mm); limits 59–59.3 mmThe high-temperature product keeps its material and vendor identity. Dimensional tolerances, coaxiality and guide clearances use the DIN EN 16983 general range rules; hardness is resolved separately from the material condition and vendor/order source. | Resolved | DIN EN 16983:2017-09EN 16983 page 12（PDF 14） |
| Product thicknesst / t′ | 17.88 mm (-0.1/+0.1 mm); limits 17.78–17.98 mmThe product thickness exceeds the direct DIN EN 16983 disc-spring tolerance-table range. The terminal table row is continued as an explicit engineering baseline for supplementary manufacturing and inspection. | Resolved | DIN-EN-16983-2017-09DIN EN 16983 Tables 8–10 terminal range, engineering continuation beyond t=14 mm |
| Free heightH0 / l₀ | 18.85 mm (-0.3/+0.3 mm); limits 18.55–19.15 mmThe product thickness exceeds the direct DIN EN 16983 disc-spring tolerance-table range. The terminal table row is continued as an explicit engineering baseline for supplementary manufacturing and inspection. | Resolved | DIN-EN-16983-2017-09DIN EN 16983 Tables 8–10 terminal range, engineering continuation beyond t=14 mm |
| Cone heighth0 / h₀ | 0.97 mmThe catalog nominal h0 is retained. This size is not fully covered by both general free-height and thickness tolerance tables, so no h0 limits are invented. | nominal_reference_only | Pending approved sourceSupplementary catalog nominal geometry |
| Coaxiality— | ≤ 0.7 mmThe high-temperature product keeps its material and vendor identity. Dimensional tolerances, coaxiality and guide clearances use the DIN EN 16983 general range rules; hardness is resolved separately from the material condition and vendor/order source. | Resolved | DIN EN 16983:2017-09EN 16983 page 12（PDF 14） |
| Flatness— | Set by approved drawing, process card or supply agreementThe standard does not provide a universal independent numeric tolerance; an approved drawing, process card or supply agreement must provide the acceptance value. | Agreement required | POLYSPLENDID-INSPECTION-POLICY-2026-08Task 121 标准原文核对结论 |
| Parallelism— | Set by approved drawing, process card or supply agreementThe standard does not provide a universal independent numeric tolerance; an approved drawing, process card or supply agreement must provide the acceptance value. | Agreement required | POLYSPLENDID-INSPECTION-POLICY-2026-08Task 121 标准原文核对结论 |
| Test loadFt | 834709.242938 N (-5/+5%); limits 792973.780791–876444.705085 NThe product thickness exceeds the direct DIN EN 16983 disc-spring tolerance-table range. The terminal table row is continued as an explicit engineering baseline for supplementary manufacturing and inspection. | Resolved | DIN-EN-16983-2017-09rounded_almen_laszlo_calculation |
| Hardness— | material_condition_requiredFinished hardness for material AISI-H13 shall be tied to its cold-work, ageing, or quench-and-temper condition and to a vendor/order source. The ordinary 50CrV4/51CrV4 range of 42–52 HRC is not reused. Structured vendor-condition values are stored as contextual inspection requirements. | material_condition_required | Pending approved source— |
Where cone-height limits are shown, they are derived references only. Flatness and parallelism become acceptance criteria only after an approved drawing, process card or supply agreement supplies numeric values.
