Stainless and Corrosion-resistant Disc Springs / 301 Stainless Steel

35.5018.302.00*2.65

CHRISTIAN_BAUER model reference: 105 536 · CB-CV4-XLS · locator Liste Niro!B38:O38

MUBEA model reference: 18 4628 · MUBEA-MANUAL-2023 · printed p.82 (PDF p.84)

SCHNORR model reference: 093 683 · SCHNORR-HANDBOOK-EN · locator 104

SCHNORR model reference: 094 400 · SCHNORR-HANDBOOK-EN · locator 114

SCHNORR model reference: 094 600 · SCHNORR-HANDBOOK-EN · locator 120

Dimensions, standards and downloadable engineering files are generated from published product data.

Made to order

SPECIFICATION

Product data

Open calculator →

Outside diameter De: 35.50 mm
Inside diameter Di: 18.30 mm
Product thickness t: 2.00 mm
Free height l₀: 2.65 mm
Cone height h₀: 0.65 mm
Standard: 厂商不锈钢与耐腐蚀规格
Material / surface treatment: X10CrNi18-8 / AISI 301 Stainless SteelPlain / natural finish · Cold presetting / scraggingERP: 35.50*18.30*2.00*2.65-T-H0.65-1.4310-PLAIN-PSX7CrNiAl17-7 / AISI 631 / 17-7PHPlain / natural finish · Cold presetting / scraggingERP: 35.50*18.30*2.00*2.65-T-H0.65-1.4568-PLAIN-PSX22CrMoV12-1 Thermally Stable SteelPlain / natural finish · Cold presetting / scraggingERP: 35.50*18.30*2.00*2.65-T-H0.65-1.4923-PLAIN-PSX39CrMo17-1 Corrosion-resistant SteelPlain / natural finish · Cold presetting / scraggingERP: 35.50*18.30*2.00*2.65-T-H0.65-1.4122-PLAIN-PS
Temperature: -200 – 200 °C

ENGINEERING FILES

CAD / DXF / STEP

Repository CAD · direct download

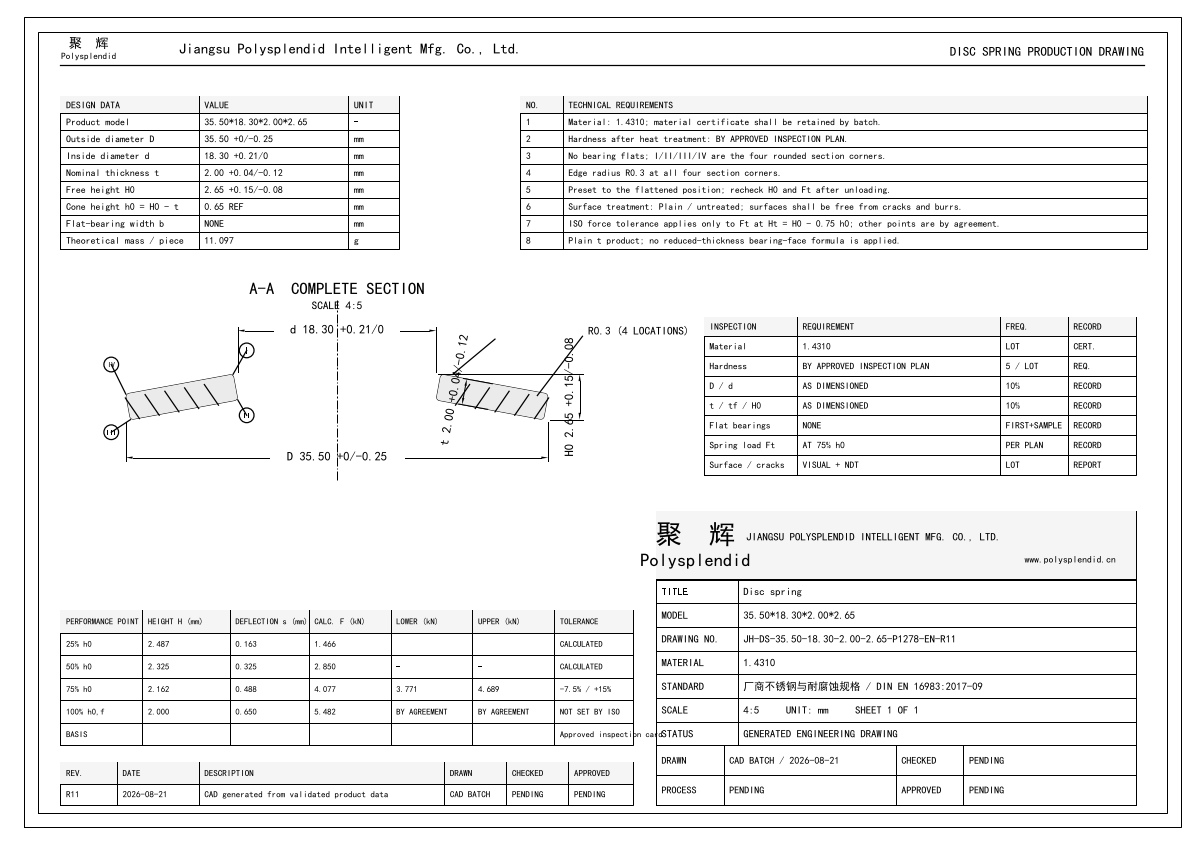

35.50*18.30*2.00*2.65 DXF and DWG engineering drawing preview

Open full drawing preview

DWG35.50*18.30*2.00*2.65 DWG CADJH-DS-35.50-18.30-2.00-2.65-P1278-EN-R11.dwg · 50 KB

Download

DXF35.50*18.30*2.00*2.65 DXF CADJH-DS-35.50-18.30-2.00-2.65-P1278-EN-R11.dxf · 125 KB

Download

STEP35.50*18.30*2.00*2.65 STEP CADJH-DS-35.50-18.30-2.00-2.65-P1278-R11.step · 21 KB

Download

STL35.50*18.30*2.00*2.65 STL CADJH-DS-35.50-18.30-2.00-2.65-P1278-R11.stl · 1.6 MB

Download

ENGINEERING OVERVIEW

Candidate decision overview

Data version 3

GEOMETRY CONTRACT

Conical profile

Bearing surfaces: No
Tolerance grade: See dossier / confirm

Special surface parameters must be reviewed against the released drawing; the profile name alone is not a complete geometry definition.

EVIDENCE COVERAGE

✓Manufacturer curve / stress5✓Polysplendid calculations1✓Resolved standards2✓Inspection dossier1—Approved product FEMNot public

A missing FEM record is not evidence of failed validation. It means no approved product-level study is public on this page.

COMBINATION BOUNDARY

Check single disc before stack

Parallel stacks primarily multiply load; series stacks primarily multiply travel. Friction, contact, guidance, preload and manufacturing scatter must be checked separately.

Stack and curves Fatigue / relaxation boundary Calculate this product

CF-07 · PROCESS CARD LIBRARY

Manufacturing process cards

4 material route(s)

Each material and supplied-surface identity has its own database-driven workbook and PNG preview. A review or blocked status is not a production release.

V12929 · R04

1.4122

PLAIN

CONTINUOUS_DIE_FORM+MARTENSITIC_CORROSION_QT+NO_SUPPORT_FACE+STRONG_PRESS+PLAIN

Blocked — not for production

Download Excel · 20.6 kB

V12927 · R04

1.4310

PLAIN

CONTINUOUS_DIE_FORM+AUSTENITIC_COLD_WORK+NO_SUPPORT_FACE+STRONG_PRESS+PLAIN

Blocked — not for production

Download Excel · 20.4 kB

V12925 · R04

1.4568

PLAIN

CONTINUOUS_DIE_FORM+PH_STAINLESS+NO_SUPPORT_FACE+STRONG_PRESS+PLAIN

Blocked — not for production

Download Excel · 20.8 kB

V17061 · R04

1.4923

PLAIN

CONTINUOUS_DIE_FORM+HEAT_RESISTANT_STEEL+NO_SUPPORT_FACE+STRONG_PRESS+PLAIN

Blocked — not for production

Download Excel · 20.6 kB

APPROVED SOURCE DATA

Manufacturer engineering data

5 traceable datasets

Loads, stresses, thousand-piece weights and curves retain their manufacturer, source version, page/worksheet, material and temperature condition. A catalog value is an engineering reference unless the inspection dossier separately identifies an approved acceptance tolerance.

Christian Bauer GmbH + Co. KG 105 536Manufacturer workbook calculation

Source: Christian Bauer cb_cV4 Product List / local reference edition
Location: Liste Niro row 38
Material: 1.4568
Temperature: Not stated - not assumed
Curve scope: single_point / loading
1000-piece weight: —

Point	s/h0	s (mm)	F (N)	σ1 / σII (MPa)	σ2 / σIII (MPa)	σ3 (MPa)	σOM (MPa)
75% h0	0.750	0.4875	4,077	—	—	—	—

Mubea 18 4628Manufacturer catalog calculation

Source: Mubea Disc Springs Manual 2023 EN / 2023
Location: page 84
Material: 1.4568
Temperature: Not stated - not assumed
Curve scope: partial_two_point_curve / loading
1000-piece weight: —

Published source points only; no interpolation.

Point	s/h0	s (mm)	F (N)	σ1 / σII (MPa)	σ2 / σIII (MPa)	σ3 (MPa)	σOM (MPa)
25% h0	0.251	0.1630	1,423	565	337	306	—
50% h0	0.500	0.3250	2,767	1,097	706	590	—

SCHNORR GmbH 093 683Manufacturer catalog summary

Source: Schnorr Disc Springs Handbook / source copy in project archive
Location: page 104
Material: 1.4310
Temperature: Not stated - not assumed
Curve scope: summary_only / loading
1000-piece weight: 11.385 kg

This source table publishes a summary (weight and/or σOM) but no displacement-load points; no curve has been invented.

SCHNORR GmbH 094 400Manufacturer catalog summary

Source: Schnorr Disc Springs Handbook / source copy in project archive
Location: page 114
Material: 1.4122
Temperature: Not stated - not assumed
Curve scope: summary_only / loading
1000-piece weight: 11.097 kg

This source table publishes a summary (weight and/or σOM) but no displacement-load points; no curve has been invented.

SCHNORR GmbH 094 600Manufacturer catalog summary

Source: Schnorr Disc Springs Handbook / source copy in project archive
Location: page 120
Material: 1.4923
Temperature: Not stated - not assumed
Curve scope: summary_only / loading
1000-piece weight: 11.097 kg

This source table publishes a summary (weight and/or σOM) but no displacement-load points; no curve has been invented.

STANDARD DOSSIER

Resolved standard requirements

33 resolved items

DIN EN 16983:2017-09Disc springs — Quality specifications — Dimensions

Series — · Group 2 · without bearing surfaces

Incomplete fields: 缺少 A/B/C 尺寸系列，系列专属规则无法解析

ProductDisc spring group 2

Table 2 · EN 16983 pages 6～7（PDF 8～9）

ProductStandard spring steel requirement

EN 10083 / EN 10089 / EN 10132-4 MPa

5 · EN 16983 page 7（PDF 9）

ProcessGroup 2 manufacturing and surface finish

冲压/精冲、冷成形、内外径加工、边缘倒圆

Table 7 · EN 16983 page 11（PDF 13）

ProductThickness tolerance

deviation -0.12 / +0.04 mm；product limits 1.88–2.04 mm

Table 8 · EN 16983 page 13（PDF 15）

ProductOutside diameter h12 tolerance

deviation -0.25 / 0 mm；product limits 35.25–35.5 mm；h12

8.1 / ISO 286-2 · EN 16983 page 12（PDF 14）

ProductInside diameter H12 tolerance

deviation 0 / +0.21 mm；product limits 18.3–18.51 mm；H12

8.1 / ISO 286-2 · EN 16983 page 12（PDF 14）

ProductFree-height tolerance

deviation -0.08 / +0.15 mm；product limits 2.57–2.8 mm

Table 9 · EN 16983 page 13（PDF 15）

ProductTest-load tolerance

deviation -7.5 / +15 %；test position 0.75 h0

Table 10 · EN 16983 pages 13～14（PDF 15～16）

ProductCoaxiality tolerance

0.32 mm；2 × IT11

8.1 / ISO 286-2 · EN 16983 page 12（PDF 14）

ProductGroup 2 hardness

42–52 HRC

7.2 · EN 16983 page 11（PDF 13）

ProductRecommended total clearance for guide pin

0.3 mm；recommended guide pin diameter 18 mm

Table 12 · EN 16983 page 15（PDF 17）

ProductRecommended total clearance for guide sleeve

0.6 mm；recommended guide sleeve bore 36.1 mm

Table 12 · EN 16983 page 15（PDF 17）

ProductGuide component surface requirement

See requirement data

12 · EN 16983 section 12, page 21（PDF 23）

ProcessPresetting

2 × test load；压至平位后复核自由高度与检测负荷

7.4 / 8.4.2 · EN 16983 pages 12, 14（PDF 14, 16）

ProcessSurface quality and edges

无影响性能的斑疤、裂纹、锈蚀；边缘倒圆或去毛刺

7.5 · EN 16983 page 12（PDF 14）

ProcessSurface treatment and corrosion protection

phosphated and oiled

7.5 · EN 16983 page 12（PDF 14）

ProcessShot peening

recommended for dynamic duty where fatigue-life improvement is required；process agreement required

10.2.2 · EN 16983 page 20（PDF 22）

InspectionDecarburization depth

product maximum depth 0.06 mm

7.2 · EN 16983 page 11（PDF 13）

ProductStatic calculated stress limit

See requirement data

10.1 · EN 16983 page 17（PDF 19）

ProductMinimum preload for dynamic duty

0.15–0.2 h0；product limits 0.0975–0.13 mm

10.2.1 · EN 16983 page 18（PDF 20）

ProductRelaxation and operating-temperature note

Consult the manufacturer above 100 °C for material, stress and relaxation requirements

9 / Figures 3–4 · EN 16983 page 17（PDF 19）

InspectionTest-load method

test position 0.75 h0；硬化、磨削并抛光的压盘；使用适合润滑剂

8.4.1 · EN 16983 page 13（PDF 15）

InspectionDimensional inspection method

按标准约定的量具、压盘及测量条件执行

8 · EN 16983 pages 13～14（PDF 15～16）

InspectionHardness test method and location

See requirement data

11.3 · EN 16983 page 21（PDF 23）

BatchBatch sampling and acceptance

Acceptance inspection according to EN ISO 3269 where applicable

2 · EN 16983 pages 11～18（PDF 13～20）

PackagingMarking, packaging and storage

Contract and product documentation requirements apply

contract · EN 16983 pages 11～18（PDF 13～20）

PS/DS-G01-2026Polysplendid disc-spring engineering recommendations (non-mandatory)

Series — · Group 2 · without bearing surfaces

Incomplete fields: 缺少 A/B/C 尺寸系列，系列专属规则无法解析

ProductRecommended edge-radius range (enterprise drawing rule)

t产品 / 6 ≤ R ≤ t产品 / 5；product limits 0.333333–0.4 mm；product recommendation 0.333333 mm；Use actual product thickness: t for plain T products and t-prime for reduced TP products. CAD defaults to the lower bound while drawings expose the full recommended range.

Disc Spring Contact Surfaces · Machinery's Handbook 31st, p.390（厂商经验转述）

ProductPolysplendid default working-deflection range

0.2–0.75 h0；product limits 0.13–0.4875 mm

聚辉推荐 DS-G01 · Mubea 2023 manual PDF 27；SPIROL deflection-range white paper

ProductNormal parallel-stack count recommendation

1–4

3.10 Spring stack design · Mubea Disc Springs Manual 2023, PDF 24

ProductSeries-stack limit for standard fatigue-chart evidence

See requirement data

10.2.2 · DIN EN 16983 page 18（PDF 20）

ProcessGuidance and stack lubrication

按温度、介质和寿命选择油、脂、含二硫化钼膏或固体润滑；不得把未润滑摩擦忽略

guidance / lubrication / friction · Mubea 2023 manual PDF 25, 28～31；Christian Bauer theory PDF 17

ProductGuidance preference

优先内导柱；空间或结构要求时使用外导套；低迟滞需求评估自定心结构

C.1 / 3.10 · GB/T 1972.2 附录 C；Mubea 2023 manual PDF 24～25

ProductGeometry triggers for enhanced analysis

De/Di=1.939891，De/t=17.75，within simplified-geometry range

3.9 Special cases · Mubea Disc Springs Manual 2023, PDF 21

INSPECTION DOSSIER

Product inspection requirements

7 acceptance limits

Data boundary: 不锈钢/耐腐蚀产品保留其材料与厂商规格身份；尺寸公差、同轴度和导向间隙按 DIN EN 16983 通用范围规则解析；硬度按材料状态和厂商/订单来源独立解析; 平面度没有标准通用数值，等待图纸/工艺卡/供需协议覆盖; 平行度没有标准通用数值，等待图纸/工艺卡/供需协议覆盖

Characteristic	Requirement / limits	Status	Source
Outside diameterD / De	35.5 mm (-0.25/+0 mm); limits 35.25–35.5 mmThe stainless/corrosion-resistant product keeps its material and vendor identity. Dimensional tolerances, coaxiality and guide clearances use the DIN EN 16983 general range rules; hardness is resolved separately from the material condition and vendor/order source.	Resolved	DIN EN 16983:2017-09EN 16983 page 12（PDF 14）
Inside diameterd / Di	18.3 mm (+0/+0.21 mm); limits 18.3–18.51 mmThe stainless/corrosion-resistant product keeps its material and vendor identity. Dimensional tolerances, coaxiality and guide clearances use the DIN EN 16983 general range rules; hardness is resolved separately from the material condition and vendor/order source.	Resolved	DIN EN 16983:2017-09EN 16983 page 12（PDF 14）
Product thicknesst / t′	2 mm (-0.12/+0.04 mm); limits 1.88–2.04 mmThe stainless/corrosion-resistant product keeps its material and vendor identity. Dimensional tolerances, coaxiality and guide clearances use the DIN EN 16983 general range rules; hardness is resolved separately from the material condition and vendor/order source.	Resolved	DIN EN 16983:2017-09EN 16983 page 13（PDF 15）
Free heightH0 / l₀	2.65 mm (-0.08/+0.15 mm); limits 2.57–2.8 mmThe stainless/corrosion-resistant product keeps its material and vendor identity. Dimensional tolerances, coaxiality and guide clearances use the DIN EN 16983 general range rules; hardness is resolved separately from the material condition and vendor/order source.	Resolved	DIN EN 16983:2017-09EN 16983 page 13（PDF 15）
Cone heighth0 / h₀	0.65 mm (-0.12/+0.27 mm); limits 0.53–0.92 mmWorst-case envelope derived from free-height and plain product thickness t tolerances; it is a reference, not an independent standard h0 acceptance tolerance.	Derived reference	DIN-EN-16983-2017-09EN 16983 page 13（PDF 15）; EN 16983 page 13（PDF 15）
Coaxiality—	≤ 0.32 mmThe stainless/corrosion-resistant product keeps its material and vendor identity. Dimensional tolerances, coaxiality and guide clearances use the DIN EN 16983 general range rules; hardness is resolved separately from the material condition and vendor/order source.	Resolved	DIN EN 16983:2017-09EN 16983 page 12（PDF 14）
Flatness—	Set by approved drawing, process card or supply agreementThe standard does not provide a universal independent numeric tolerance; an approved drawing, process card or supply agreement must provide the acceptance value.	Agreement required	POLYSPLENDID-INSPECTION-POLICY-2026-08Task 121 标准原文核对结论
Parallelism—	Set by approved drawing, process card or supply agreementThe standard does not provide a universal independent numeric tolerance; an approved drawing, process card or supply agreement must provide the acceptance value.	Agreement required	POLYSPLENDID-INSPECTION-POLICY-2026-08Task 121 标准原文核对结论
Test loadFt	4077 N (-7.5/+15%); limits 3771.225–4688.55 NThe nominal test load comes from the current published standard, manufacturer, or engineering dataset; limits use the applicable DIN EN 16983 percentage tolerance.	Resolved	DIN EN 16983:2017-09approved_manufacturer_f75
Hardness—	material_condition_requiredFinished hardness for material 1.4310 shall be tied to its cold-work, ageing, or quench-and-temper condition and to a vendor/order source. The ordinary 50CrV4/51CrV4 range of 42–52 HRC is not reused. Structured vendor-condition values are stored as contextual inspection requirements.	material_condition_required	DIN EN 16983:2017-09—
Hardness—	42–52 HRCMubea product-range general hardness tolerance; use for Mubea references only, with material/order-specific conditions taking precedence.	Resolved	MUBEA-MANUAL-2023-ENp. 32, Table 3.3, entire product range

Where cone-height limits are shown, they are derived references only. Flatness and parallelism become acceptance criteria only after an approved drawing, process card or supply agreement supplies numeric values.
