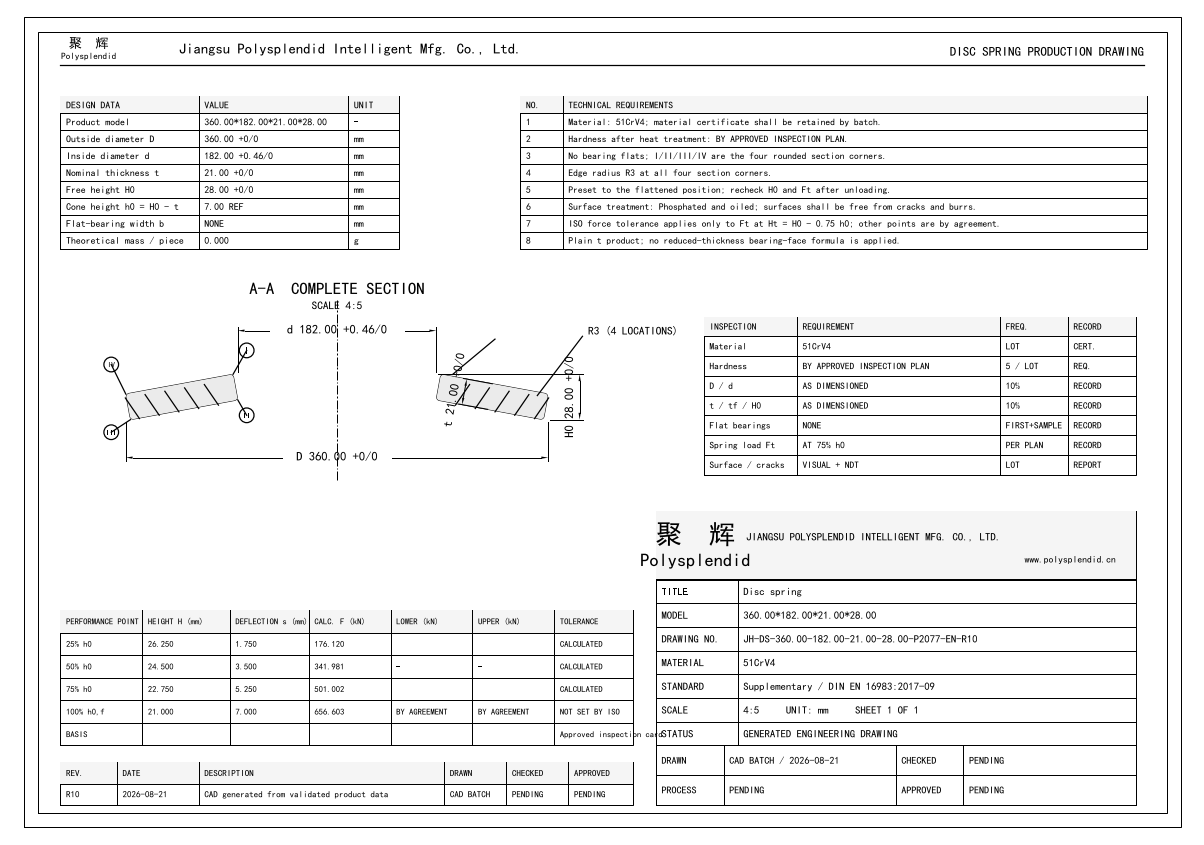

| Outside diameterD / De | 360 mm (-0.57/+0 mm); limits 359.43–360 mmThis supplementary geometry is outside the A/B/C dimension tables; dimensional tolerances, coaxiality, hardness and guide clearances use the applicable DIN EN 16983 general range rules. | Resolved | DIN EN 16983:2017-09EN 16983 page 12（PDF 14） |
|---|
| Inside diameterd / Di | 182 mm (+0/+0.46 mm); limits 182–182.46 mmThis supplementary geometry is outside the A/B/C dimension tables; dimensional tolerances, coaxiality, hardness and guide clearances use the applicable DIN EN 16983 general range rules. | Resolved | DIN EN 16983:2017-09EN 16983 page 12（PDF 14） |
|---|
| Product thicknesst / t′ | 21 mm (-0.1/+0.1 mm); limits 20.9–21.1 mmThe product thickness exceeds the direct DIN EN 16983 disc-spring tolerance-table range. The terminal table row is continued as an explicit engineering baseline for supplementary manufacturing and inspection. | Resolved | DIN-EN-16983-2017-09DIN EN 16983 Tables 8–10 terminal range, engineering continuation beyond t=14 mm |
|---|
| Free heightH0 / l₀ | 28 mm (-0.3/+0.3 mm); limits 27.7–28.3 mmThe product thickness exceeds the direct DIN EN 16983 disc-spring tolerance-table range. The terminal table row is continued as an explicit engineering baseline for supplementary manufacturing and inspection. | Resolved | DIN-EN-16983-2017-09DIN EN 16983 Tables 8–10 terminal range, engineering continuation beyond t=14 mm |
|---|
| Cone heighth0 / h₀ | 7 mmThe catalog nominal h0 is retained. This size is not fully covered by both general free-height and thickness tolerance tables, so no h0 limits are invented. | nominal_reference_only | Pending approved sourceSupplementary catalog nominal geometry |
|---|
| Coaxiality— | ≤ 1.14 mmThis supplementary geometry is outside the A/B/C dimension tables; dimensional tolerances, coaxiality, hardness and guide clearances use the applicable DIN EN 16983 general range rules. | Resolved | DIN EN 16983:2017-09EN 16983 page 12（PDF 14） |
|---|
| Flatness— | Set by approved drawing, process card or supply agreementThe standard does not provide a universal independent numeric tolerance; an approved drawing, process card or supply agreement must provide the acceptance value. | Agreement required | POLYSPLENDID-INSPECTION-POLICY-2026-08Task 121 标准原文核对结论 |
|---|
| Parallelism— | Set by approved drawing, process card or supply agreementThe standard does not provide a universal independent numeric tolerance; an approved drawing, process card or supply agreement must provide the acceptance value. | Agreement required | POLYSPLENDID-INSPECTION-POLICY-2026-08Task 121 标准原文核对结论 |
|---|
| Test loadFt | 556903.412398 N (-5/+5%); limits 529058.241778–584748.583018 NThe product thickness exceeds the direct DIN EN 16983 disc-spring tolerance-table range. The terminal table row is continued as an explicit engineering baseline for supplementary manufacturing and inspection. | Resolved | DIN-EN-16983-2017-09rounded_almen_laszlo_calculation |
|---|
| Hardness— | Nominal value only; approved tolerance source requiredThis supplementary geometry is outside the A/B/C dimension tables; dimensional tolerances, coaxiality, hardness and guide clearances use the applicable DIN EN 16983 general range rules. | Approved source required | Pending approved source— |
|---|
