Supplementary Disc Springs / Supplementary Sizes

125.0071.008.00*10.40

Dimensions, standards and downloadable engineering files are generated from published product data.

Made to order

SPECIFICATION

Product data

Open calculator →

Outside diameter De: 125.00 mm
Inside diameter Di: 71.00 mm
Product thickness t: 8.00 mm
Free height l₀: 10.40 mm
Cone height h₀: 2.40 mm
Standard: Supplementary
Material / surface treatment: 51CrV4 Spring SteelZinc phosphate and oil · Cold presetting / scraggingERP: 125.00*71.00*8.00*10.40-T-H2.40-51CRV4-PHOSPHATE_OIL-PS60Si2MnAZinc phosphate and oil · Cold presetting / scraggingERP: 125.00*71.00*8.00*10.40-T-H2.40-60SI2MNA-PHOSPHATE_OIL-PS
Temperature: -50 – 300 °C

ENGINEERING FILES

CAD / DXF / STEP

Repository CAD · direct download

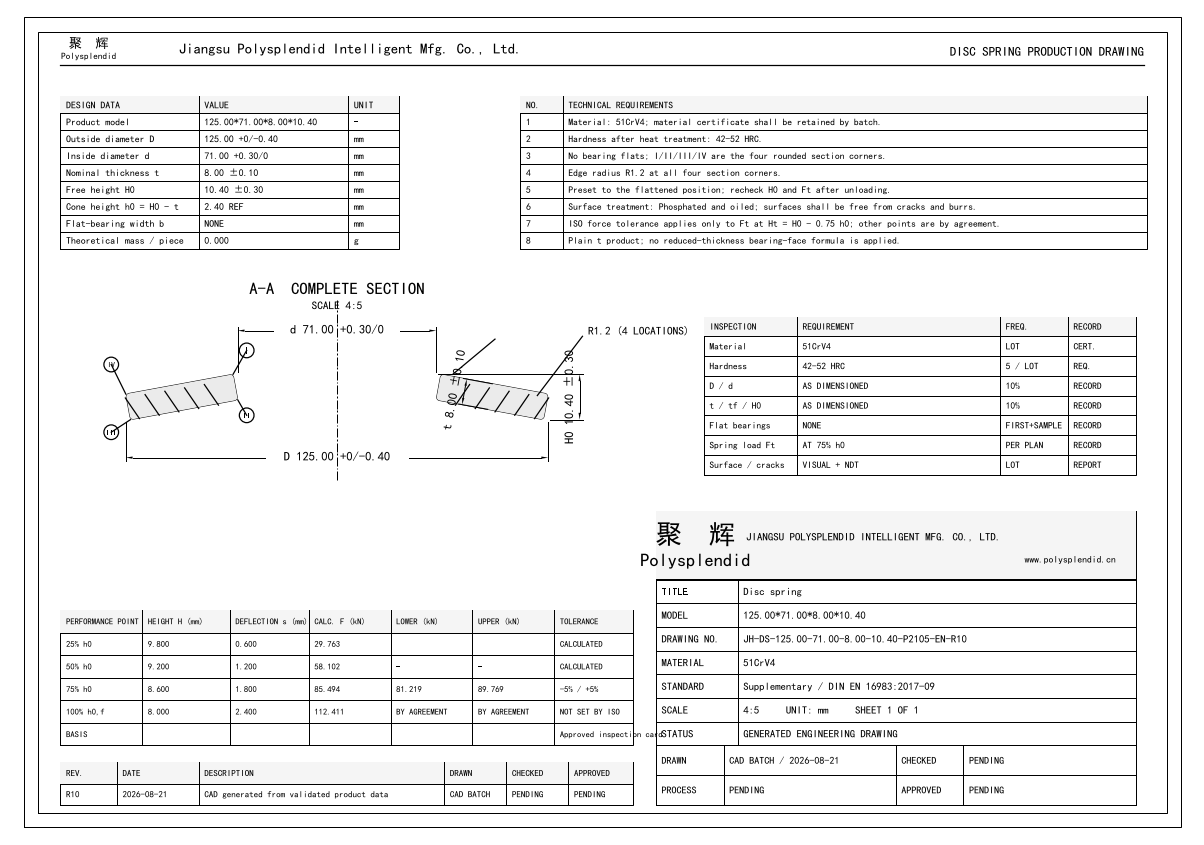

125.00*71.00*8.00*10.40 DXF and DWG engineering drawing preview

Open full drawing preview

DWG125.00*71.00*8.00*10.40 DWG CADJH-DS-125.00-71.00-8.00-10.40-P2105-EN-R10.dwg · 49 KB

Download

DXF125.00*71.00*8.00*10.40 DXF CADJH-DS-125.00-71.00-8.00-10.40-P2105-EN-R10.dxf · 125 KB

Download

STEP125.00*71.00*8.00*10.40 STEP CADJH-DS-125.00-71.00-8.00-10.40-P2105-R10.step · 21 KB

Download

STL125.00*71.00*8.00*10.40 STL CADJH-DS-125.00-71.00-8.00-10.40-P2105-R10.stl · 1.6 MB
