Supplementary Disc Springs / Supplementary Sizes

40.0014.201.25*2.65

CHRISTIAN_BAUER model reference: 104 677 · CB-DISC-SPRINGS-0611 · locator 160

Dimensions, standards and downloadable engineering files are generated from published product data.

Made to order

SPECIFICATION

Product data

Open calculator →

Outside diameter De: 40.00 mm
Inside diameter Di: 14.20 mm
Product thickness t: 1.25 mm
Free height l₀: 2.65 mm
Cone height h₀: 1.40 mm
Standard: Christian Bauer / Supplementary
Material / surface treatment: 51CrV4 Spring SteelZinc phosphate and oil · Cold presetting / scraggingERP: 40.00*14.20*1.25*2.65-T-H1.40-51CRV4-PHOSPHATE_OIL-PS60Si2MnAZinc phosphate and oil · Cold presetting / scraggingERP: 40.00*14.20*1.25*2.65-T-H1.40-60SI2MNA-PHOSPHATE_OIL-PS
Temperature: -50 – 300 °C

ENGINEERING FILES

CAD / DXF / STEP

Repository CAD · direct download

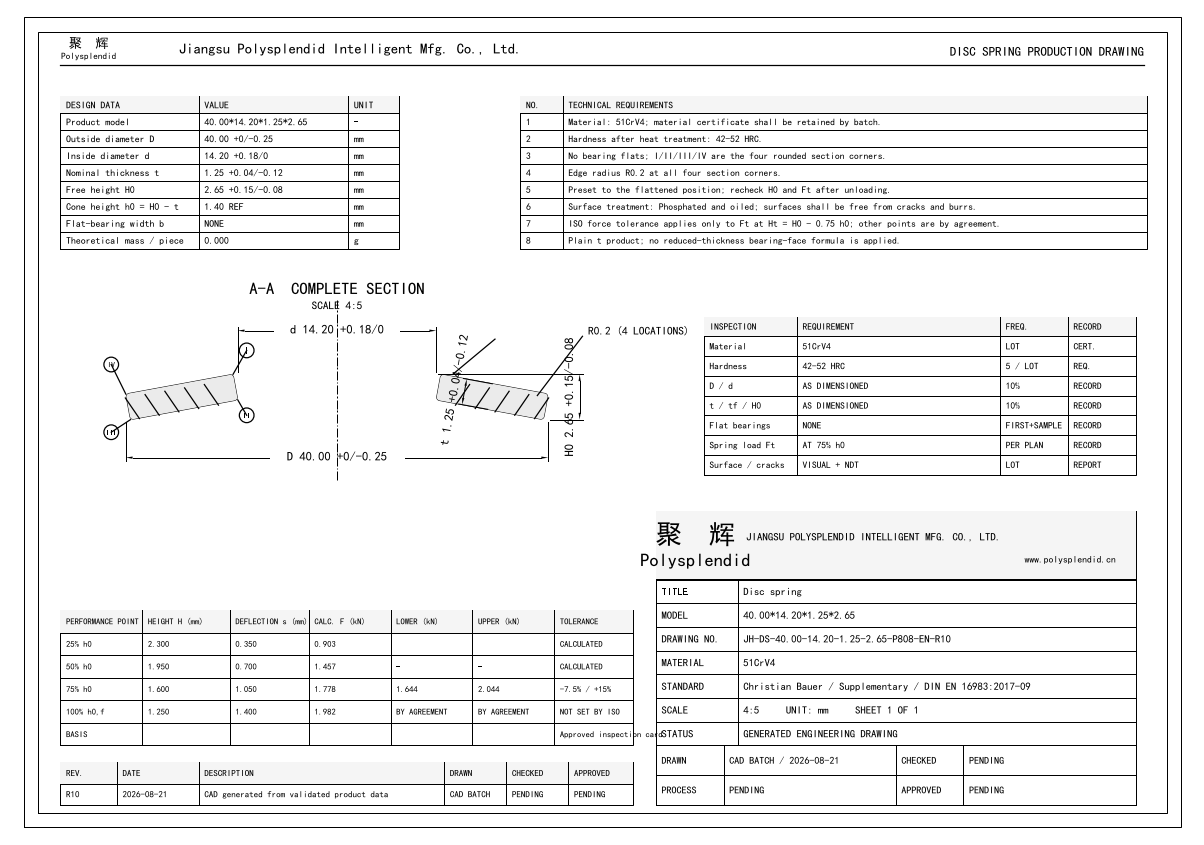

40.00*14.20*1.25*2.65 DXF and DWG engineering drawing preview

Open full drawing preview

DWG40.00*14.20*1.25*2.65 DWG CADJH-DS-40.00-14.20-1.25-2.65-P808-EN-R10.dwg · 49 KB

Download

DXF40.00*14.20*1.25*2.65 DXF CADJH-DS-40.00-14.20-1.25-2.65-P808-EN-R10.dxf · 125 KB

Download

STEP40.00*14.20*1.25*2.65 STEP CADJH-DS-40.00-14.20-1.25-2.65-P808-R10.step · 21 KB

Download

STL40.00*14.20*1.25*2.65 STL CADJH-DS-40.00-14.20-1.25-2.65-P808-R10.stl · 1.6 MB

Download

ENGINEERING OVERVIEW

Candidate decision overview

Data version 4

GEOMETRY CONTRACT

Conical profile

Bearing surfaces: No
Tolerance grade: See dossier / confirm

Special surface parameters must be reviewed against the released drawing; the profile name alone is not a complete geometry definition.

EVIDENCE COVERAGE

✓Manufacturer curve / stress1✓Polysplendid calculations1✓Resolved standards3✓Inspection dossier1—Approved product FEMNot public

A missing FEM record is not evidence of failed validation. It means no approved product-level study is public on this page.

COMBINATION BOUNDARY

Check single disc before stack

Parallel stacks primarily multiply load; series stacks primarily multiply travel. Friction, contact, guidance, preload and manufacturing scatter must be checked separately.

Stack and curves Fatigue / relaxation boundary Calculate this product

CF-07 · PROCESS CARD LIBRARY

Manufacturing process cards

4 material route(s)

Each material and supplied-surface identity has its own database-driven workbook and PNG preview. A review or blocked status is not a production release.

V18422 · R04

50CrVA

BLACK_OXIDE

CONTINUOUS_DIE_FORM+LOW_ALLOY_QT+NO_SUPPORT_FACE+STRONG_PRESS+BLACK_OXIDE

Blocked — not for production

Download Excel · 20.7 kB

V18424 · R04

51CrV4

PHOSPHATE_OIL

CONTINUOUS_DIE_FORM+LOW_ALLOY_QT+NO_SUPPORT_FACE+STRONG_PRESS+PHOSPHATE_OIL

Blocked — not for production

Download Excel · 20.4 kB

V18423 · R04

60Si2MnA

BLACK_OXIDE

CONTINUOUS_DIE_FORM+LOW_ALLOY_QT+NO_SUPPORT_FACE+STRONG_PRESS+BLACK_OXIDE

Blocked — not for production

Download Excel · 20.7 kB

V19609 · R04

60Si2MnA

PHOSPHATE_OIL

CONTINUOUS_DIE_FORM+LOW_ALLOY_QT+NO_SUPPORT_FACE+STRONG_PRESS+PHOSPHATE_OIL

Blocked — not for production

Download Excel · 20.7 kB

APPROVED SOURCE DATA

Manufacturer engineering data

1 traceable datasets

Loads, stresses, thousand-piece weights and curves retain their manufacturer, source version, page/worksheet, material and temperature condition. A catalog value is an engineering reference unless the inspection dossier separately identifies an approved acceptance tolerance.

Christian Bauer GmbH + Co. KG 104 677Manufacturer workbook calculation

Source: Christian Bauer cb_cV4 Product List / local reference edition
Location: Liste row 127
Material: Not stated in this source table
Temperature: Not stated - not assumed
Curve scope: single_point / loading
1000-piece weight: —

Point	s/h0	s (mm)	F (N)	σ1 / σII (MPa)	σ2 / σIII (MPa)	σ3 (MPa)	σOM (MPa)
75% h0	0.750	1.0500	1,778	—	—	—	—

STANDARD DOSSIER

Resolved standard requirements

56 resolved items

DIN EN 16983:2017-09Disc springs — Quality specifications — Dimensions

Series — · Group 2 · without bearing surfaces

Incomplete fields: 补充规格不属于 A/B/C 尺寸表；通用公差、导向与工艺规则仍按尺寸/组别解析

ProductDisc spring group 2

Table 2 · EN 16983 pages 6～7（PDF 8～9）

ProductStandard spring steel requirement

EN 10083 / EN 10089 / EN 10132-4 MPa

5 · EN 16983 page 7（PDF 9）

ProcessGroup 2 manufacturing and surface finish

冲压/精冲、冷成形、内外径加工、边缘倒圆

Table 7 · EN 16983 page 11（PDF 13）

ProductThickness tolerance

deviation -0.12 / +0.04 mm；product limits 1.13–1.29 mm

Table 8 · EN 16983 page 13（PDF 15）

ProductOutside diameter h12 tolerance

deviation -0.25 / 0 mm；product limits 39.75–40 mm；h12

8.1 / ISO 286-2 · EN 16983 page 12（PDF 14）

ProductInside diameter H12 tolerance

deviation 0 / +0.18 mm；product limits 14.2–14.38 mm；H12

8.1 / ISO 286-2 · EN 16983 page 12（PDF 14）

ProductFree-height tolerance

deviation -0.08 / +0.15 mm；product limits 2.57–2.8 mm

Table 9 · EN 16983 page 13（PDF 15）

ProductTest-load tolerance

deviation -7.5 / +15 %；test position 0.75 h0

Table 10 · EN 16983 pages 13～14（PDF 15～16）

ProductCoaxiality tolerance

0.32 mm；2 × IT11

8.1 / ISO 286-2 · EN 16983 page 12（PDF 14）

ProductGroup 2 hardness

42–52 HRC

7.2 · EN 16983 page 11（PDF 13）

ProductRecommended total clearance for guide pin

0.2 mm；recommended guide pin diameter 14 mm

Table 12 · EN 16983 page 15（PDF 17）

ProductRecommended total clearance for guide sleeve

0.6 mm；recommended guide sleeve bore 40.6 mm

Table 12 · EN 16983 page 15（PDF 17）

ProductGuide component surface requirement

See requirement data

12 · EN 16983 section 12, page 21（PDF 23）

ProcessPresetting

2 × test load；压至平位后复核自由高度与检测负荷

7.4 / 8.4.2 · EN 16983 pages 12, 14（PDF 14, 16）

ProcessSurface quality and edges

无影响性能的斑疤、裂纹、锈蚀；边缘倒圆或去毛刺

7.5 · EN 16983 page 12（PDF 14）

ProcessSurface treatment and corrosion protection

phosphated and oiled

7.5 · EN 16983 page 12（PDF 14）

ProcessShot peening

recommended for dynamic duty where fatigue-life improvement is required；process agreement required

10.2.2 · EN 16983 page 20（PDF 22）

InspectionDecarburization depth

product maximum depth 0.0375 mm

7.2 · EN 16983 page 11（PDF 13）

ProductStatic calculated stress limit

See requirement data

10.1 · EN 16983 page 17（PDF 19）

ProductMinimum preload for dynamic duty

0.15–0.2 h0；product limits 0.21–0.28 mm

10.2.1 · EN 16983 page 18（PDF 20）

ProductRelaxation and operating-temperature note

Consult the manufacturer above 100 °C for material, stress and relaxation requirements

9 / Figures 3–4 · EN 16983 page 17（PDF 19）

InspectionTest-load method

test position 0.75 h0；硬化、磨削并抛光的压盘；使用适合润滑剂

8.4.1 · EN 16983 page 13（PDF 15）

InspectionDimensional inspection method

按标准约定的量具、压盘及测量条件执行

8 · EN 16983 pages 13～14（PDF 15～16）

InspectionHardness test method and location

See requirement data

11.3 · EN 16983 page 21（PDF 23）

BatchBatch sampling and acceptance

Acceptance inspection according to EN ISO 3269 where applicable

2 · EN 16983 pages 11～18（PDF 13～20）

PackagingMarking, packaging and storage

Contract and product documentation requirements apply

contract · EN 16983 pages 11～18（PDF 13～20）

GB/T 1972.2-2023Disc springs — Part 2: Technical specifications

Series — · Group 2 · without bearing surfaces

Incomplete fields: 补充规格不属于 A/B/C 尺寸表；通用公差、导向与工艺规则仍按尺寸/组别解析; 缺少国标公差等级 I/II，分级公差规则无法解析

ProductDisc spring group 2

表 2 · GB/T 1972.2 标准页4～5（PDF 11～12）

ProductStandard product designation

碟簧 ? 40-? GB/T 1972.2

B.2 · GB/T 1972.2 附录 B B.2（标准页27/PDF 34）

ProductStandard spring steel requirement

50CrVA / 51CrMnV / 60Si2MnA；材料质量证明及复验

6.1 · GB/T 1972.2 标准页5（PDF 12）

ProductThickness tolerance

deviation -0.12 / +0.09 mm；product limits 1.13–1.34 mm

表5 · GB/T 1972.2 标准页6（PDF 13）

ProductFree-height tolerance

deviation -0.08 / +0.15 mm；product limits 2.57–2.8 mm

表7 · GB/T 1972.2 标准页8（PDF 15）

ProductGroup 2 hardness

42–52 HRC

6.5.1 · GB/T 1972.2 标准页10（PDF 17）

ProductRecommended total clearance for guide pin

0.2 mm；recommended guide pin diameter 14 mm

表 C.1 · GB/T 1972.2 附录 C 表 C.1（标准页30/PDF 37）

ProductRecommended total clearance for guide sleeve

0.6 mm；recommended guide sleeve bore 40.6 mm

表 C.1 · GB/T 1972.2 附录 C 表 C.1（标准页30/PDF 37）

ProductGuide component surface requirement

See requirement data

C.2 · GB/T 1972.2 附录 C C.2（标准页30/PDF 37）

ProcessPresetting

2 × test load；压至平位后复核自由高度与检测负荷

6.6 / 7.3 · GB/T 1972.2 标准页10、15（PDF 17、22）

ProcessSurface quality and edges

无影响性能的斑疤、裂纹、锈蚀；边缘倒圆或去毛刺

6.4 · GB/T 1972.2 标准页9（PDF 16）

ProcessSurface treatment and corrosion protection

磷化或供需双方约定

6.7 · GB/T 1972.2 标准页10（PDF 17）

ProcessShot peening

按需及供需协议；GB/T 31214.1

6.8 · GB/T 1972.2 标准页10（PDF 17）

InspectionDecarburization depth

product maximum depth 0.0375 mm

6.5.2 · GB/T 1972.2 标准页10（PDF 17）

ProductStatic calculated stress limit

See requirement data

6.9.1 · GB/T 1972.2 标准页10（PDF 17）

ProductMinimum preload for dynamic duty

0.15–0.2 h0；product limits 0.21–0.28 mm

6.9.2 · GB/T 1972.2 标准页10～11（PDF 17～18）

ProductRelaxation and operating-temperature note

Consult the manufacturer above 100 °C for material, stress and relaxation requirements

6.10 / 图6 · GB/T 1972.2 标准页14（PDF 21）

InspectionTest-load method

test position 0.75 h0；硬化、磨削并抛光的压盘；使用适合润滑剂

7.6 · GB/T 1972.2 标准页19（PDF 26）

InspectionDimensional inspection method

厚度测量三个或更多点取平均；外径取多点最大值、内径取多点最小值；自由高度多次测量取平均

7.4 · GB/T 1972.2 标准页15～18（PDF 22～25）

InspectionHardness test method and location

See requirement data

7.7 · GB/T 1972.2 标准页20（PDF 27）

InspectionInspection equipment capability

See requirement data

7.2 · GB/T 1972.2 标准页15（PDF 22）

BatchBatch sampling and acceptance

特殊检查水平 S-4；缺陷按 A/B/C 分类并按批量选择抽样方案

8.1～8.5，表9～13 · GB/T 1972.2 标准页20～23（PDF 27～30）

PackagingMarking, packaging and storage

清洁、防潮、防损；附产品合格证；通风干燥贮存

9 · GB/T 1972.2 标准页23～24（PDF 30～31）

PS/DS-G01-2026Polysplendid disc-spring engineering recommendations (non-mandatory)

Series — · Group 2 · without bearing surfaces

Incomplete fields: 补充规格不属于 A/B/C 尺寸表；通用公差、导向与工艺规则仍按尺寸/组别解析

ProductRecommended edge-radius range (enterprise drawing rule)

t产品 / 6 ≤ R ≤ t产品 / 5；product limits 0.208333–0.25 mm；product recommendation 0.208333 mm；Use actual product thickness: t for plain T products and t-prime for reduced TP products. CAD defaults to the lower bound while drawings expose the full recommended range.

Disc Spring Contact Surfaces · Machinery's Handbook 31st, p.390（厂商经验转述）

ProductPolysplendid default working-deflection range

0.2–0.75 h0；product limits 0.28–1.05 mm

聚辉推荐 DS-G01 · Mubea 2023 manual PDF 27；SPIROL deflection-range white paper

ProductNormal parallel-stack count recommendation

1–4

3.10 Spring stack design · Mubea Disc Springs Manual 2023, PDF 24

ProductSeries-stack limit for standard fatigue-chart evidence

See requirement data

10.2.2 · DIN EN 16983 page 18（PDF 20）

ProcessGuidance and stack lubrication

按温度、介质和寿命选择油、脂、含二硫化钼膏或固体润滑；不得把未润滑摩擦忽略

guidance / lubrication / friction · Mubea 2023 manual PDF 25, 28～31；Christian Bauer theory PDF 17

ProductGuidance preference

优先内导柱；空间或结构要求时使用外导套；低迟滞需求评估自定心结构

C.1 / 3.10 · GB/T 1972.2 附录 C；Mubea 2023 manual PDF 24～25

ProductGeometry triggers for enhanced analysis

De/Di=2.816901，De/t=32，within simplified-geometry range

3.9 Special cases · Mubea Disc Springs Manual 2023, PDF 21

INSPECTION DOSSIER

Product inspection requirements

7 acceptance limits

Data boundary: 补充规格不属于 A/B/C 尺寸表；尺寸公差、同轴度、硬度和导向间隙按 DIN EN 16983 通用范围规则解析; 平面度没有标准通用数值，等待图纸/工艺卡/供需协议覆盖; 平行度没有标准通用数值，等待图纸/工艺卡/供需协议覆盖

Characteristic	Requirement / limits	Status	Source
Outside diameterD / De	40 mm (-0.25/+0 mm); limits 39.75–40 mmThis supplementary geometry is outside the A/B/C dimension tables; dimensional tolerances, coaxiality, hardness and guide clearances use the applicable DIN EN 16983 general range rules.	Resolved	DIN EN 16983:2017-09EN 16983 page 12（PDF 14）
Inside diameterd / Di	14.2 mm (+0/+0.18 mm); limits 14.2–14.38 mmThis supplementary geometry is outside the A/B/C dimension tables; dimensional tolerances, coaxiality, hardness and guide clearances use the applicable DIN EN 16983 general range rules.	Resolved	DIN EN 16983:2017-09EN 16983 page 12（PDF 14）
Product thicknesst / t′	1.25 mm (-0.12/+0.04 mm); limits 1.13–1.29 mmThis supplementary geometry is outside the A/B/C dimension tables; dimensional tolerances, coaxiality, hardness and guide clearances use the applicable DIN EN 16983 general range rules.	Resolved	DIN EN 16983:2017-09EN 16983 page 13（PDF 15）
Free heightH0 / l₀	2.65 mm (-0.08/+0.15 mm); limits 2.57–2.8 mmThis supplementary geometry is outside the A/B/C dimension tables; dimensional tolerances, coaxiality, hardness and guide clearances use the applicable DIN EN 16983 general range rules.	Resolved	DIN EN 16983:2017-09EN 16983 page 13（PDF 15）
Cone heighth0 / h₀	1.4 mm (-0.12/+0.27 mm); limits 1.28–1.67 mmWorst-case envelope derived from free-height and plain product thickness t tolerances; it is a reference, not an independent standard h0 acceptance tolerance.	Derived reference	DIN-EN-16983-2017-09EN 16983 page 13（PDF 15）; EN 16983 page 13（PDF 15）
Coaxiality—	≤ 0.32 mmThis supplementary geometry is outside the A/B/C dimension tables; dimensional tolerances, coaxiality, hardness and guide clearances use the applicable DIN EN 16983 general range rules.	Resolved	DIN EN 16983:2017-09EN 16983 page 12（PDF 14）
Flatness—	Set by approved drawing, process card or supply agreementThe standard does not provide a universal independent numeric tolerance; an approved drawing, process card or supply agreement must provide the acceptance value.	Agreement required	POLYSPLENDID-INSPECTION-POLICY-2026-08Task 121 标准原文核对结论
Parallelism—	Set by approved drawing, process card or supply agreementThe standard does not provide a universal independent numeric tolerance; an approved drawing, process card or supply agreement must provide the acceptance value.	Agreement required	POLYSPLENDID-INSPECTION-POLICY-2026-08Task 121 标准原文核对结论
Test loadFt	1778 N (-7.5/+15%); limits 1644.65–2044.7 NThe nominal test load comes from the current published standard, manufacturer, or engineering dataset; limits use the applicable DIN EN 16983 percentage tolerance.	Resolved	DIN EN 16983:2017-09approved_manufacturer_f75
Hardness—	42–52 HRCThis supplementary geometry is outside the A/B/C dimension tables; dimensional tolerances, coaxiality, hardness and guide clearances use the applicable DIN EN 16983 general range rules.	Resolved	DIN EN 16983:2017-09EN 16983 page 11（PDF 13）

Where cone-height limits are shown, they are derived references only. Flatness and parallelism become acceptance criteria only after an approved drawing, process card or supply agreement supplies numeric values.
