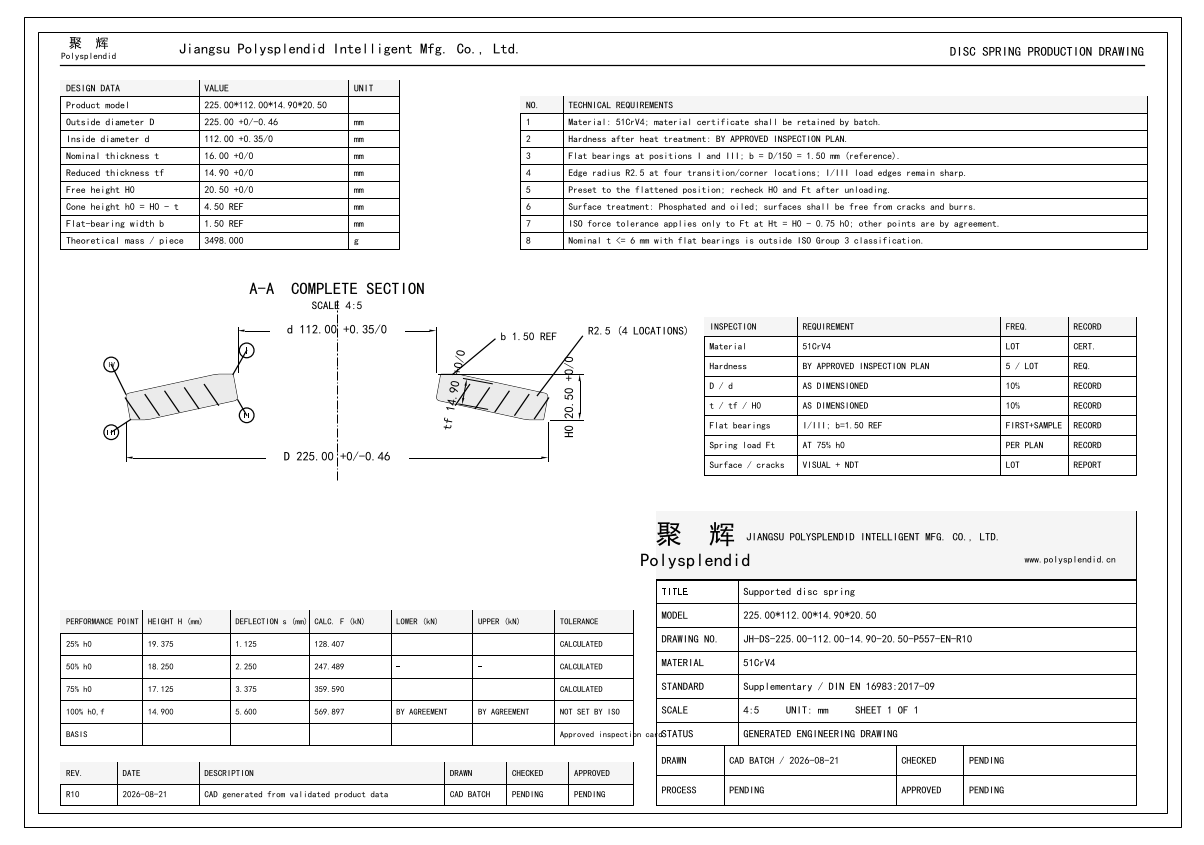

| Outside diameterD / De | 225 mm (-0.46/+0 mm); limits 224.54–225 mmThis supplementary geometry is outside the A/B/C dimension tables; dimensional tolerances, coaxiality, hardness and guide clearances use the applicable DIN EN 16983 general range rules. | Resolved | DIN EN 16983:2017-09EN 16983 page 12（PDF 14） |
|---|
| Inside diameterd / Di | 112 mm (+0/+0.35 mm); limits 112–112.35 mmThis supplementary geometry is outside the A/B/C dimension tables; dimensional tolerances, coaxiality, hardness and guide clearances use the applicable DIN EN 16983 general range rules. | Resolved | DIN EN 16983:2017-09EN 16983 page 12（PDF 14） |
|---|
| Product thicknesst / t′ | 14.9 mm (-0.1/+0.1 mm); limits 14.8–15 mmThe product thickness exceeds the direct DIN EN 16983 disc-spring tolerance-table range. The terminal table row is continued as an explicit engineering baseline for supplementary manufacturing and inspection. | Resolved | DIN-EN-16983-2017-09DIN EN 16983 Tables 8–10 terminal range, engineering continuation beyond t=14 mm |
|---|
| Free heightH0 / l₀ | 20.5 mm (-0.3/+0.3 mm); limits 20.2–20.8 mmThe product thickness exceeds the direct DIN EN 16983 disc-spring tolerance-table range. The terminal table row is continued as an explicit engineering baseline for supplementary manufacturing and inspection. | Resolved | DIN-EN-16983-2017-09DIN EN 16983 Tables 8–10 terminal range, engineering continuation beyond t=14 mm |
|---|
| Cone heighth0 / h₀ | 4.5 mmFor this supplementary geometry, h0 follows the catalog nominal base thickness t. The finished t-prime tolerance is not reused to invent an independent h0 acceptance limit. | nominal_reference_only | Pending approved sourceSupplementary catalog geometry with DIN EN 16983 general tolerance basis |
|---|
| Coaxiality— | ≤ 0.92 mmThis supplementary geometry is outside the A/B/C dimension tables; dimensional tolerances, coaxiality, hardness and guide clearances use the applicable DIN EN 16983 general range rules. | Resolved | DIN EN 16983:2017-09EN 16983 page 12（PDF 14） |
|---|
| Flatness— | Set by approved drawing, process card or supply agreementThe standard does not provide a universal independent numeric tolerance; an approved drawing, process card or supply agreement must provide the acceptance value. | Agreement required | POLYSPLENDID-INSPECTION-POLICY-2026-08Task 121 标准原文核对结论 |
|---|
| Parallelism— | Set by approved drawing, process card or supply agreementThe standard does not provide a universal independent numeric tolerance; an approved drawing, process card or supply agreement must provide the acceptance value. | Agreement required | POLYSPLENDID-INSPECTION-POLICY-2026-08Task 121 标准原文核对结论 |
|---|
| Test loadFt | 359590 N (-5/+5%); limits 341610.5–377569.5 NThe product thickness exceeds the direct DIN EN 16983 disc-spring tolerance-table range. The terminal table row is continued as an explicit engineering baseline for supplementary manufacturing and inspection. | Resolved | DIN-EN-16983-2017-09Standard row 240 |
|---|
| Hardness— | Nominal value only; approved tolerance source requiredThis supplementary geometry is outside the A/B/C dimension tables; dimensional tolerances, coaxiality, hardness and guide clearances use the applicable DIN EN 16983 general range rules. | Approved source required | Pending approved source— |
|---|
